MIG/MAG

M 350 Pulse Rapid

  • M 350 Pulse Rapid with inverter technology that allows the user to make the gas (MIG), electrode (MMA) and TIG welding with a single machine.

  • It provides welding without sputtering by means of pulse function. Synergic, Pulse and Manual use.

  • Comes with features of XForce, XRoot , Xpipe and Xcold programs

  • It is equipped with special programs for Steel / CrNi / Aluminum / Copper weldings.

  • Digital display and easy-to-use front panel, it allows the welder to adjust the wire speed, voltage and amperage values.

  • 37 mm wire spool, Encoder motor and 4×4 wire feed unit ensure stable and non-spun arc formation. Especially in aluminum wires, wire breaking problem is eliminated

  • With the 2T-4T function, it offers the possibility of welding without pressing the trigger continuously.

  • The LIFT-TIG function

  • Thanks to the Inverter Technology, it provides up to 35% energy saving

  • Stable arc characteristic during welding.

  • Front gas, hot start, final gas, crater filler and backflush properties

  • Thermal overload protector and error codes appearing on the digital

  • Smart Cooling Fan Technology

  • Wind Tunnel Design

  • Fully compatible with electric generators.

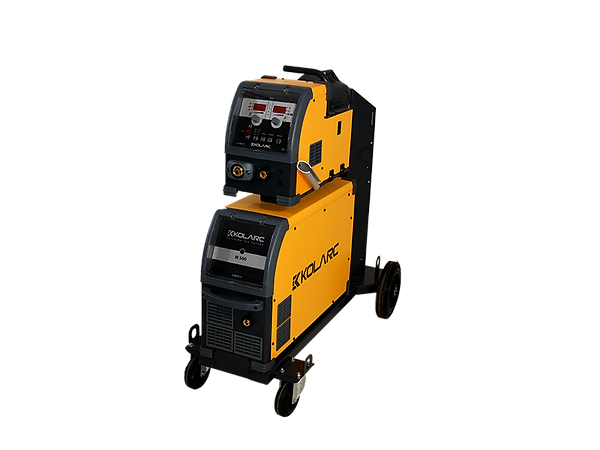

M 350 Pulse Rapid Skopje KOLARC.png

  • Mains Voltage (VAC) 400 ± %10

  • Ampere Range (A) 20-350

  • Duty Cycle (40oC)

    • %60 : 350 A, 29.8 V

    • %100 : 250 A, 25.3 V

  • Maximum Input Power (kVA) 14.7 V

  • Open Circuit Voltage (VDC) 62

  • Dimensions (HxWxL, mm) 497 x 242 x 707

  • Net Weight (kg) 98 kg

  • Standard Accessories

    • 3m Mains Cable (4 x 4 mm2)

    • 3m Chassis Cable (50 mm2)

    • Gas Regulator

    • 3m 400A Torch

  • Stock Code M0181
